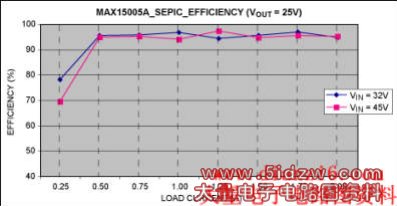

Figure 2. Load current vs. converter efficiency for VOUT = 25V.

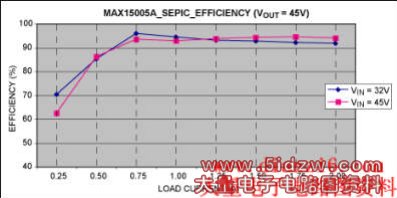

Figure 3. Load current vs. converter efficiency for VOUT = 45V.
Test conditions: VIN = 45V and VOUT = 45V.
Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET drain voltage; Ch4: output current.
Test conditions: VIN = 32V and VOUT = 45V.
Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
Test conditions: VIN = 45V and VOUT = 45V.
Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
Test conditions: VIN= 45V and VOUT= 25V.

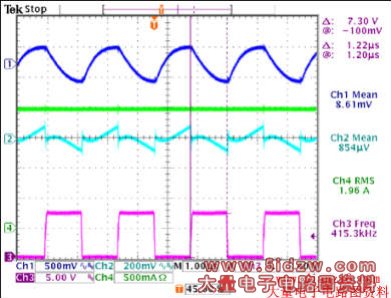

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
Efficiency Plots
Efficiency VS load-current plots are given in Figures 2 and 3. The input voltage was VOUT = 25V in Figure 2 and VOUT = 45V in Figure 3.Figure 2. Load current vs. converter efficiency for VOUT = 25V.
Figure 3. Load current vs. converter efficiency for VOUT = 45V.
Experimental Results
Converter output voltage and load current are shown in following figures for different input excitations.Test conditions: VIN = 45V and VOUT = 45V.

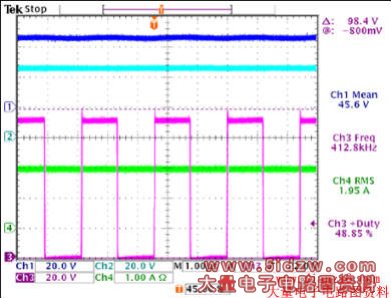

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET drain voltage; Ch4: output current.
Test conditions: VIN = 32V and VOUT = 45V.

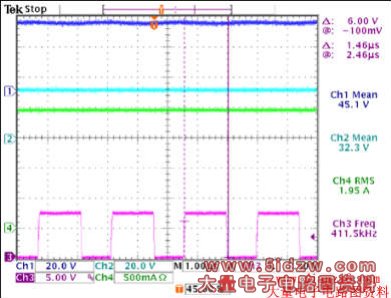

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
Test conditions: VIN = 45V and VOUT = 45V.
Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
Test conditions: VIN= 45V and VOUT= 25V.

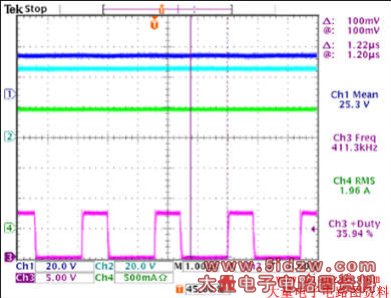

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
